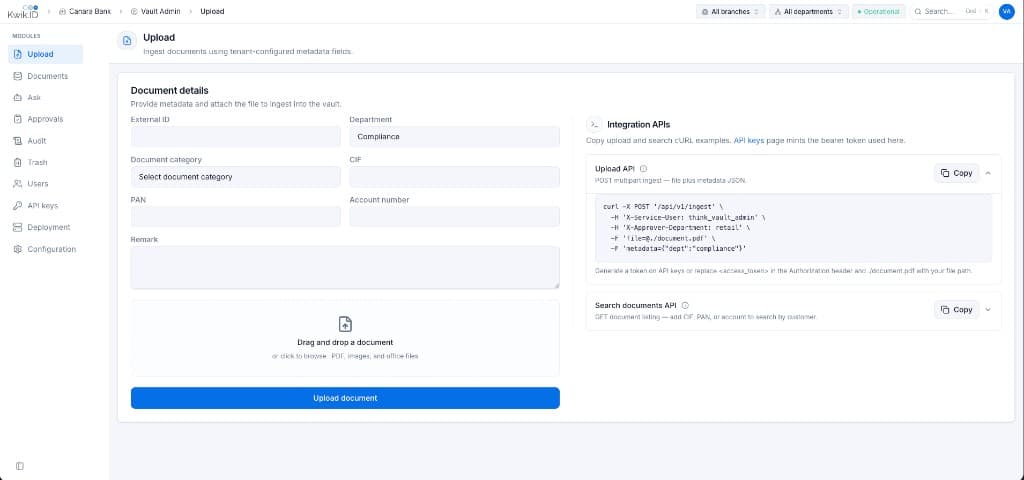

Upload

The Upload module is the entry point for manually ingesting documents into the vault. Provide metadata, attach a file, and submit, or copy ready-to-use cURL examples for programmatic integration.

Overview

Upload accepts documents from branch officers and operators who need to archive paper-origin or ad-hoc files into the same governed repository as system feeds from VKYC and Document Service.

Key Features

• Dynamic metadata form: Fields driven by tenant Metadata schema configuration (External ID, Department, Document category, CIF, PAN, Account number, Remark).
• Drag-and-drop file upload: Accept PDF, images, and office files with progress feedback.
• Ingest validation: File type and size limits enforced per tenant Ingest configuration.
• Integration APIs panel: Copy upload and search cURL examples; bearer token minted on the API keys page.
• Upload summary: Success card shows DMS ID, Business Key, version, and approval state after ingest.

Implementation

Step 1: Complete document metadata

1. Open Upload from the sidebar.
2. Fill required metadata fields:
   • External ID: Stable identifier for the Business Key (paired with source tag branch_scan for manual uploads).
   • Department: Select from authorized departments (e.g. Compliance, Retail Banking).
   • Document category: Select the document type (e.g. kyc_vkyc).
   • CIF, PAN, Account number: Optional customer references for Tier 1 search.
   • Remark: Free-text notes stored in version metadata.
3. Use branch and department scope selectors in the top bar to set upload context.

Step 2: Attach the file

1. Drag and drop a document into the drop zone, or click to browse.
2. Supported types depend on tenant ingest limits (default: PDF, images, Word, Excel, ZIP, plain text up to 50 MB each).
3. Click Upload document to submit.

Step 3: Integrate via API

The Integration APIs panel provides cURL templates:

curl -X POST '/api/v1/ingest' \
  -H 'Authorization: Bearer <access_token>' \
  -H 'X-Approver-Department: retail' \
  -F 'file=@./document.pdf' \
  -F 'metadata={"dept":"compliance"}'

1. Generate a bearer token on the API Keys page.
2. Replace the placeholder file path and metadata JSON.
3. For VKYC integrators, set source_tag to vkyc; for Document Service, use doc_service.

New versions start in pending approval state when API ingest approval is enabled in Configuration.

Benefits

• Unified ingest path: Manual uploads follow the same contract as automated system feeds.
• Self-service integration: cURL examples reduce time-to-integrate for development teams.
• Configurable validation: Admins control required customer refs and file type limits per tenant.

Next Steps

• Documents: browse ingested files
• Approvals: approve pending uploads
• Configuration: metadata schema and ingest rules
• Integration APIs: full ingest payload specification
